Product details
Function
HOPPERTOP is suitable for discontinuously, mechanically filled hoppers.
Dust collected from the air flow by a single WAM cartridge filter element drops back into the hopper after the reverse action of a compressed air pulse air jet generated by an integrated automatic cleaning system has removed the dust particles from the media. A hinged top cover protects the filter from weathering.
Features
• Filter surface: 1.4 m2 (15 sq ft)
• Air volume: up to 140 m³/h (82 cfm)
• Cartridge filter element
• Compressed air pulse-jet cleaning system (4 bar)
• Stainless-steel casing with bottom flange
• Compact design
• High filtration efficiency of WAM filter element
• Quick, tool-free filter element replacement
• Easy installation and retrofitting
Benefits
• High filtration efficiency
• Low emission level due to B.I.A.-certified filter media
• Small footprint: 0.06 m2 (0.65 sq ft)
• Corrosion-free design
Options
• Emission measurement connection
• Bottom ring

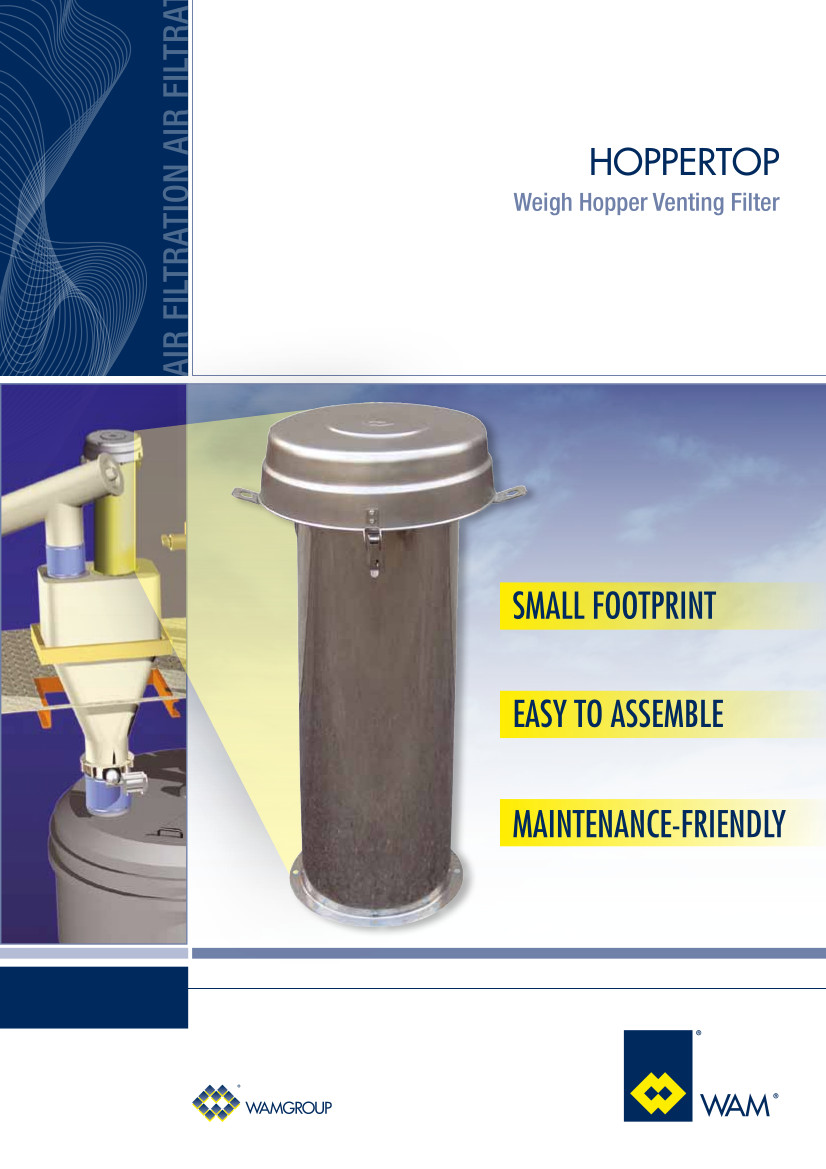

Weigh Hopper Venting Filters – HOPPERTOP
Technical sheet
