Product details
Function
HOPPERJET is a compact venting filter for mechanically filled hoppers.
Dust is separated from the air flow by a single POLYPLEAT or bag-type filter element and drops back into the hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed the dust particles from the filter elements.
Features
• Filter surface: 0.5 ~ 2m2 (5 ~ 21 sq ft)
• Air volume: 30 ~ 200 m³/h (17 ~ 118 cfm)
• Pocket or POLYPLEAT filter elements
• Compressed air pulse-jet cleaning system (4 bar)
• Stainless-steel casing with bottom flange
• Compact design
• High filtration efficiency of WAM filter element
• Quick, tool-free filter element replacement
• Easy installation and retrofitting
Benefits
• High filtration efficiency of WAM filter element
• Low emission level due to B.I.A.-certified filter media
• Small Footprint: 0.11 m2 (1.2 sq ft)
• Corrosion-free design
Options
• 304 / 316 stainless steel cover
• 316 stainless-steel casing
• Spigot for centralised suction system
• Electronic differential pressure meter (MDPE)

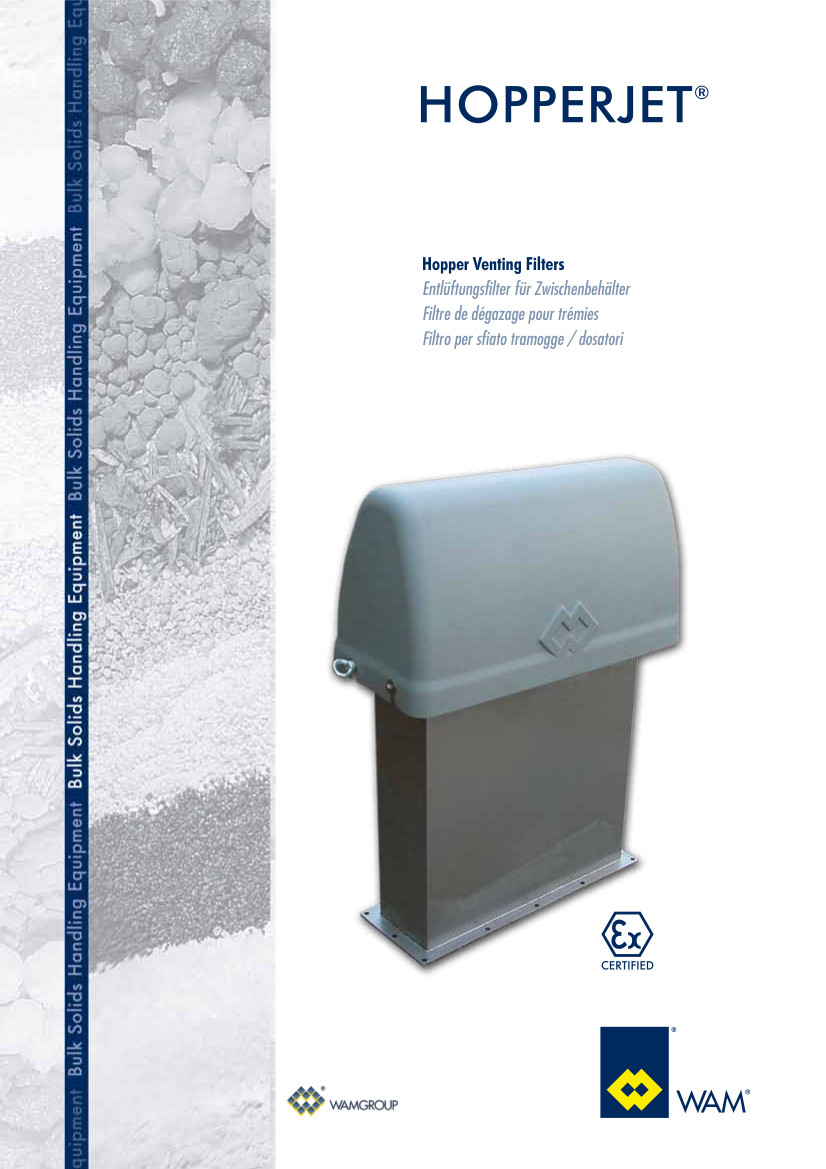

Hopper Venting Filters – HOPPERJET
Technical sheet
