Product details
Advantages
An easy to install instrument that does not require any calibration, maintenance or specific tool for its installation.
Thanks to the wide choice of paddles, all of which are interchangeable, it is adaptable to the different densities of the measured materials.
Extremely versatile, it can be installed on tanks, hoppers, on walls or roofs of silos, in a vertical, horizontal or oblique position.
Customizable with paddles, extensions, voltages and different electrical connection options.
Durable and reliable with aluminium casing, stainless steel shaft on ball bearings and electrical connection via anti-vibration faston terminals. Works with ambient temperatures from -20° to +70°C.
On request
Condensation Filter: helps preventing the formation of condensation in the level indicator casing.
8 pulses for rotation control: remotely notifying that the level indicator is working correctly.
Voltage Control: to check the correct power supply of the level indicator.
Double Contact: the level indicator will have one additional dry contact.
4 RPM: to decrease the intervention time of the level indicator.
Low Temperatures: allows the indicator to operate up to -27°C.

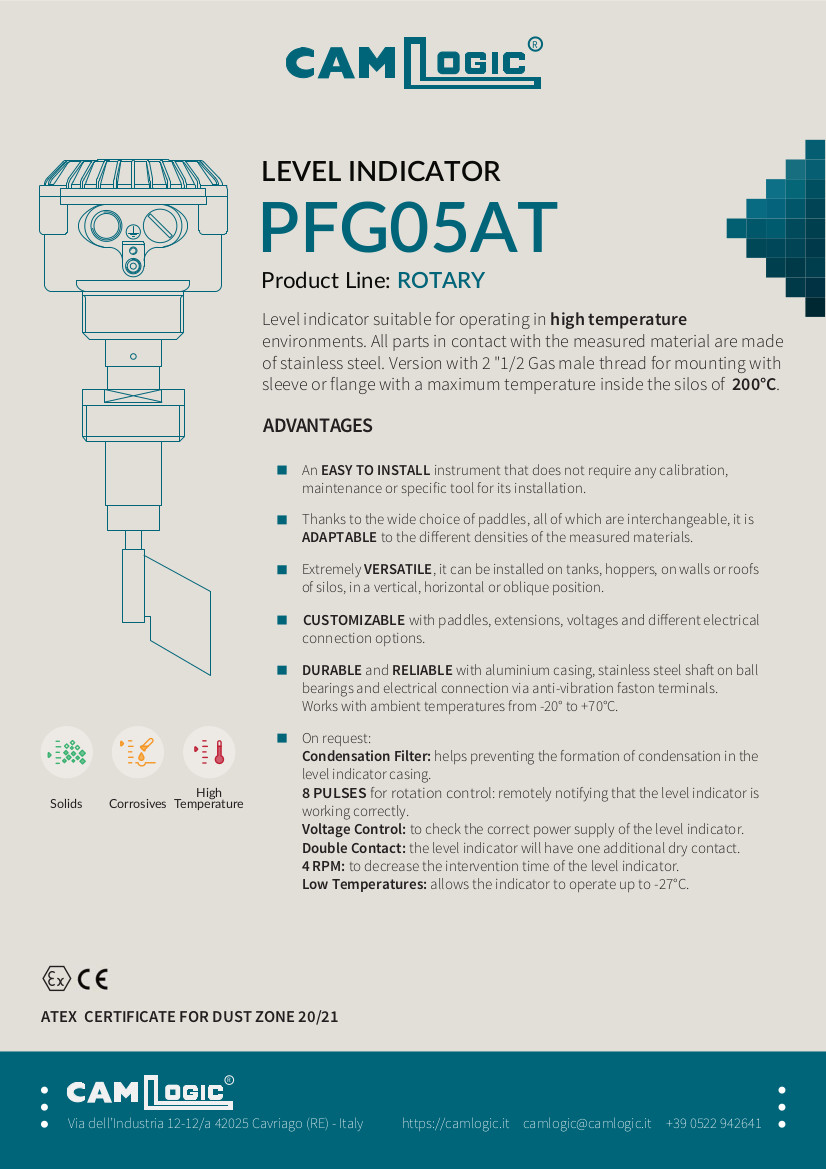

PFG05AT level indicator
Technical sheet
